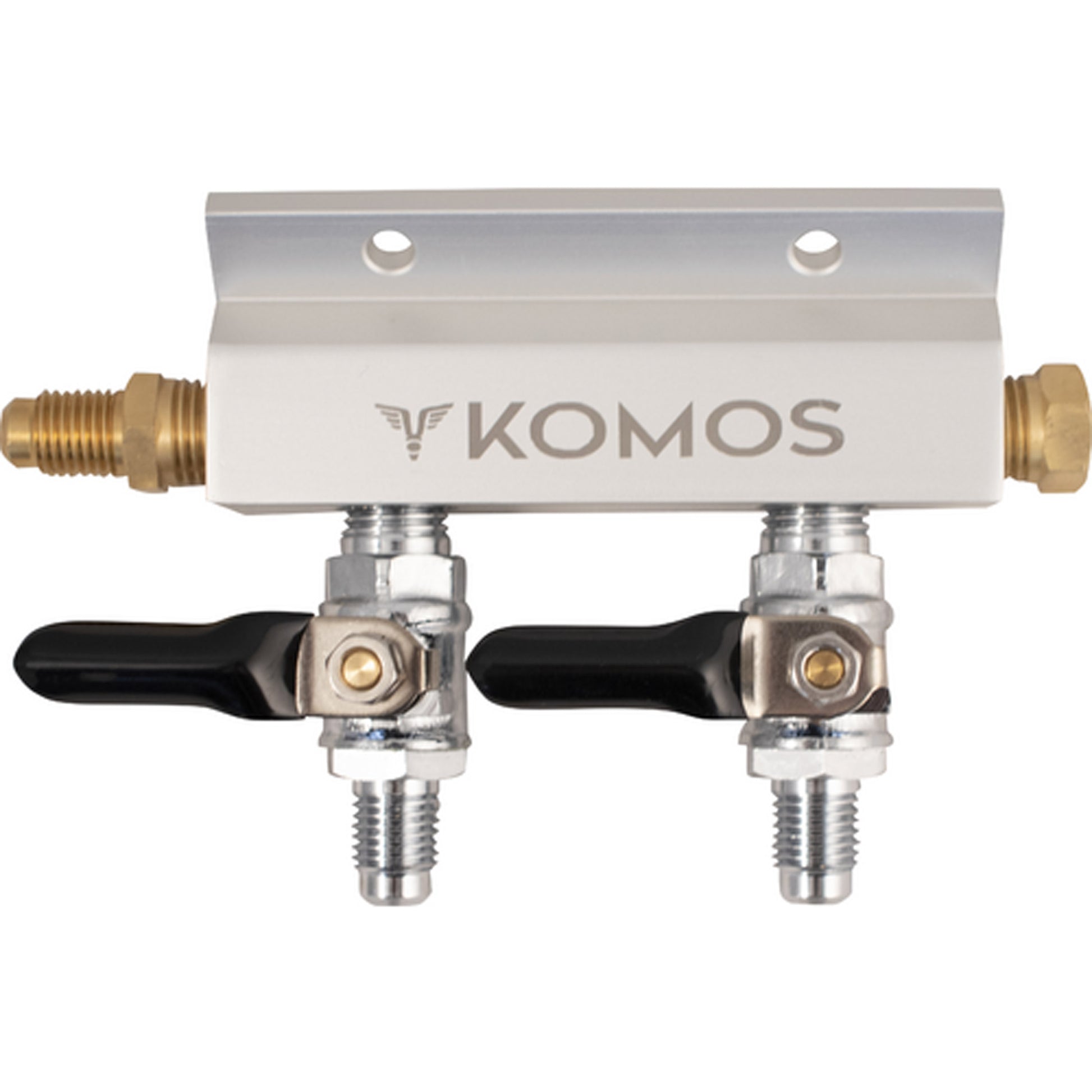

KOMOS® Aluminum Gas Manifold - 1/4 in. Flare

Gas manifolds are the best way to provide CO2 to multiple kegs inside your kegerator or keezer. The KOMOS manifold features 1/4" flare gas inlet and check valves that provide much more flexibility compared to manifolds with barbed valves. Choose the type and size of draft tubing that you prefer. Use 1/4" or 5/16" gas line with the appropriate Flare Fitting Set, or use EVABarrier—our draft line of choice—with the appropriately sized Duotight Fitting.

You can also replace one or more of the check valves with a Ball Lock Post Bulkhead, which allows you to use a gas-in ball lock jumper line as a quick connect option.

Need something bigger than a 4-way manifold? No problem! With this 1/4" Nipple, you can join multiple manifolds for as many outlets as you need.

Features:

• 1/4" Flare connections
• 1/4" BSP ball valves
• Rated to 100 psi
• Wall mount holes
• Made from aluminum, brass, and stainless steel

SizeOverall Length

2-way 5.25"

3-way 7.25"

4-way 9.25"

The above measurements are from the tip for the brass flare inlet to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.
